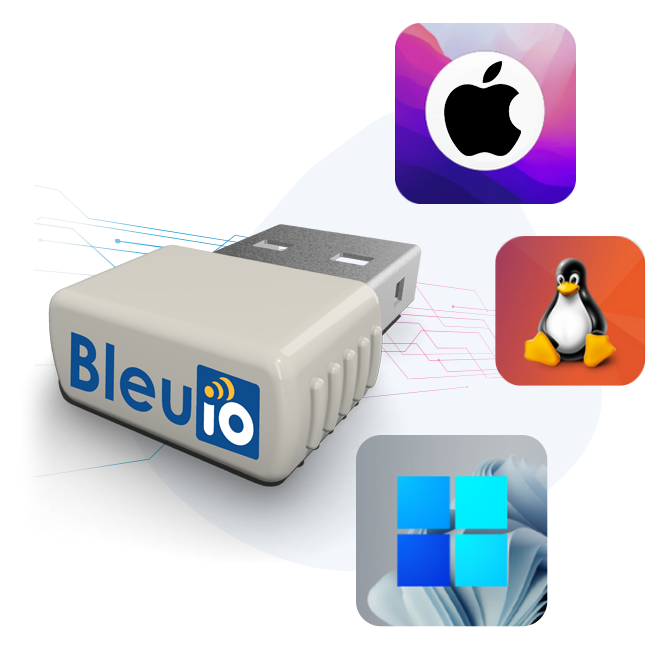

The BleuIO is a fully integrated solution, providing MCU and BluetoothÂ® radio in one chip, based on Dialog Semiconductor latest Bluetooth chip DA14683. The FLASH based device permits field or boot upgradable, while application is stored on FLASH memory. Custom settings can also be stored on FLASH memory or OTP for higher integrity.
Best deivce to learn Bluetooth Low Energy (BLE) programming
Comes with an integrated Ready to Use software that enable the user to easily create new BLE applications with simple AT-Commands scripts.
You can update the firmware or flash your own applications with the integrated bootloader of the dongle.
Including Cryptographic engine with an Elliptic Curve Controller (ECC), AES-256, SHA-1, SHA-256, SHA-512 and True Random Number Generator.
CE Marking, Complies with Radio Equipment Directive 2014/53/EU and US FCC and KC certifications. RoHS and REACH compliance.
The device is compatible with all the platforms: Windows 10, macOS, Linux.
supports BluetoothÂ® v5.0 Low Energy and based on Dialog Semiconductor latest BluetoothÂ® chip DA14683
|ROLES||Programmable Bluetooth Central or Peripheral. USB Device.|
|SECURITY||Cryptographic engine with ECC, AES-256, SHA-1, SHA-256, SHA-512 and True Random Number Generator.|
|CONNECTIVITY||Bluetooth 5.0 & USB Full Speed|
|MEMORY||FLASH 8Mbit & OTP 64kB|
|MECHANICAL||19.2 mm (L) 16.3 mm (W), 6.2 mm (D)|
|ENVIRONMENTAL||Temperature: -20 to +65 C|
|CASE MATERIAL||PBT + 20% glass fiber|
|CERTIFICATION||CE, FCC, KC, RoHS and REACH|
The device can be programmed with user specific application before delivery. Proprietary logotype can also be included if needed. Custom settings can also be stored on FLASH memory or OTP for higher integrity.
